4. Configure your server with the System/Admin Console

The Vidyo System Console (also referred to as the Admin Console) enables you to easily and quickly access all the VidyoReplay features.

Immediately after you have physically installed your Vidyo server, you must configure your VidyoReplay as described in this chapter.

For more information about installing the Vidyo server and for Vidyo server specifications, refer to the VidyoPortal and VidyoRouter Administrator Guide and the VidyoReplay Release Notes.

As you begin the configuration, keep the following deployment guidelines in mind:

  • For security reasons, Vidyo strongly recommends moving your SSH port to the standard 22 which is in the privileged port range. When upgrading from VidyoReplay version 3.1.5 to 19.1.0 or later, your port will be automatically reset to the standard SSH port 22. If you previously had SSH configured to port 2222, you should ensure that you update your firewall rules (if applicable) prior to upgrade. In addition, Vidyo Customer Support may request access to your Vidyo server over this same port in order to assist in troubleshooting any of your customer issues.
  • When setting up your Vidyo server, always be sure to configure your firewall to only permit SSH access from authorized networks and users. You can restrict Vidyo Customer Support SSH access by configuring your firewall or contact Vidyo Customer Support for other options.
  • Restrict access to your VidyoReplay Admin portal blocking HTTP/HTTPS access from untrusted networks including the Internet.
  • Change your VidyoReplay System Administrator Console default password. This must be changed after the first log in. For more information, see the following procedure.
  • Configure the network settings at the System Console. You can view the settings (read-only) in the VidyoReplay Admin Pages.

Note

The screenshots in this section show the System Admin Console (also known as the Shell menu) as seen after logging in via the terminal. The menu may look slightly different depending on how you connect and what tool you use for your connection.

Log in and change the default password

The very first time you log into your VidyoReplay server, you are required to change the default System Console password to one that is more secure. This System Console account is also the same one used when accessing the VidyoReplay Admin Portal.

To log in to the System Console and change the default password:

  1. Connect a keyboard and a VGA display directly to your server.
  2. Log in using the default Administrator account:

    3. User Name: admin

    Password: password (case sensitive)

  3. Enter admin at the “login” prompt.
  4. Enter password at the “(current) UNIX Password” prompt.

    5. The password is case sensitive. You’ll be prompted to enter a new password and asked to enter it again.

  5. Type a new password at the “Password” prompt.

    6. When selecting a new password, follow these guidelines:

    • The password should not be too similar to the old password. The default setting is at least three characters and should be different from the old password.
    • The password should not be too simple or too short. The algorithm here is a point system to satisfy the min password length (the default is length eight characters). The password gets extra points if it contains a number, upper case, lower case, or special character. Each point is equivalent to one character.
    • The password should not be a case change only of the old password or should not be the reverse of the old password.
  6. Type your new password again at the “Retype new UNIX password” prompt. If the passwords don’t match, you’ll be prompted to try again. If the passwords match, the System Console Main Menu opens immediately.

    7. If you need to reset the password, see Change user passwords.

View application and system information

You can use the System Console to view which Vidyo applications and versions you have as well as to view the system time and disk space.

View application information

To view application information:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 0 to select the Information option.
  3. Press the Enter key to select OK. The Information Menu displays.
  4. Enter 1 to select the Applications option.
  5. Press the Enter key to select OK. The Modules window displays.

    6. This window displays the list of the platform applications and the version number of each one. This information is mostly internal and useful for troubleshooting by the Vidyo Customer Support team.

View system information

To view system information:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 0 to select the Information option.
  3. Press the Enter key to select OK. The Information Menu displays.
  4. Enter 2 to select the System option.
  5. Press the Enter key to select OK. The System window displays.

    6. This window displays the system time, the used disk space, the available disk space, and the percentage used.

Set the hostname and the domain

Your Vidyo server default IP is 192.168.1.110 and should be changed to align with your local area network.

Note

A network setup must be performed for each of your Vidyo servers.

To set the hostname and the domain:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 1 to select the Hostname/Domain option.
  3. Press the Enter key to select OK. The Hostname window displays.
  4. Enter the hostname.
  5. Press the Enter key to select OK. The Domain window displays.
  6. Enter the domain.
  7. Press the Enter key to select OK. The Confirm window displays.
  8. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  9. Press the Enter key to select OK.

Configure the Production Interface

Static routes are used in deployments where Vidyo servers are in a DMZ between two segregated firewalls with no route for either internal or external traffic. Network Routes are also used when the Management Interface is enabled and you want to route traffic across that network.

Note

Vidyo recommends that this feature not replace adding proper network router to your DMZ to handle the proper subnet routes. Static route setup can lead to security vulnerabilities and should only be configured by advanced network administrators. Vidyo is not responsible for any possible security risk resulting from static route configurations.

Currently, you can only add a static route for one host at a time. Adding static routes for a range of IP addresses (or subnet) is not supported at this time.

View the Production Interface active information

The Production Interface Active Information window provides important information about the Production Interface, such as the currently configured IP address, link status, and duplex settings.

To view the Production Interface active information:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 0 to select the Active Information option.
  5. Press the Enter key to select OK. The Product Interface Active Information window displays.

Configure the IPv4 Production Interface

This section describes how to manually enable and disable the IPv4 Production Interface, how to configure IPv4 static and dynamic routes, and how to add and remove static routes.

Manually disable and enable the IPv4 Production Interface

To manually disable or enable the IPv4 Production Interface:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 4 to select the IPv4 Configuration option.
  5. Press the Enter key to select OK.
  6. Enter M to select the MANUAL option.
  7. Press the Enter key to select OK. If the current state of the Production Interface is enabled, you are asked to confirm if you want to disable it. If the current state of the Production Interface is disabled, you are asked to confirm if you want to enable it.
  8. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  9. Press the Enter key to select OK.

Configure an IPv4 Static Production Interface

To configure an IPv4 Production Interface:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 4 to select the IPv4 Configuration option.
  5. Press the Enter key to select OK.
  6. Enter S to select the STATIC option.
  7. Press the Enter key to select OK.
  8. Delete the existing IPv4 address and enter a new one.
  9. Press the Enter key to select OK.
  10. Delete the existing IPv4 subnet mask and enter a new one.
  11. Press the Enter key to select OK.
  12. Delete the existing IPv4 Replay and enter a new one.
  13. Press the Enter key to select OK.
  14. Delete the existing Domain Name Server and enter up to three.,
  15. Press the Enter key to select OK. The Confirm window displays.
  16. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  17. Press the Enter key to select OK. For more information about configuring the Production and Management interfaces, see Configure the Production Interface and Configure the Management Interface.

Configure an IPv4 DHCP Production Interface

To configure an IPv4 DHCP Production Interface:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 4 to select the IPv4 Configuration option.
  5. Press the Enter key to select OK.
  6. Enter D to select the DHCP option.
  7. Press the Enter key to select OK. The Confirm window displays.
  8. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  9. Press the Enter key to select OK.

Configure IPv4 Static routes

This section describes how to add and remove IPv4 static routes.

The VidyoReplay system supports IPv4 only or IPv6 only mode. Dual stack mode is not supported.

Add IPv4 Static routes

To add IPv4 Static routes:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 5 to select the IPv4 Static Routes option.

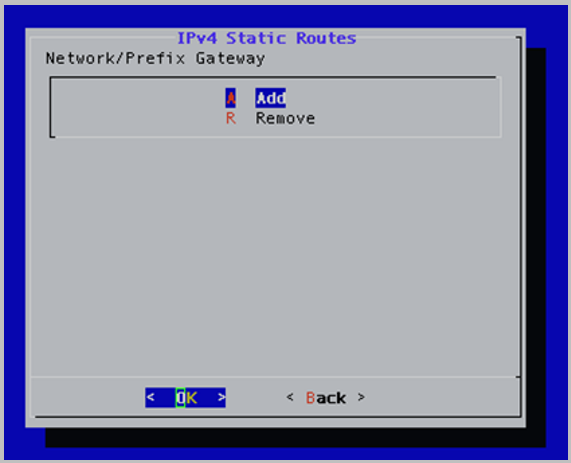

  5. Press the Enter key to select OK. The IPv4 Static Routes window displays.
  6. Enter A to select the Add option.
  7. Press the Enter key to select OK.
  8. Delete the existing IPv4 address and enter a new one.
  9. Press the Enter key to select OK.
  10. Delete the existing IPv4 subnet mask and enter a new one.
  11. Press the Enter key to select OK.
  12. Delete the existing IPv4 gateway and enter a new one.
  13. Press the Enter key to select OK.
  14. Delete the existing Domain Name Server and enter up to three.
  15. Press the Enter key to select OK. The Confirm window displays.
  16. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  17. Press the Enter key to select OK. For more information about configuring the Production and Management interfaces, see Configure the Production Interface and Configure the Management Interface.

Remove IPv4 Static routes

To remove IPv4 Static routes:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 5 to select the IPv4 Static Routes option.
  5. Press the Enter key to select OK. The IPv4 Static Routes window displays.
  6. Enter R to select the Remove option.
  7. Press the Enter key to select OK. The IPv4 Static Routes window displays.
  8. Select the static route to remove.
  9. Press the Enter key to select OK. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  10. Press the Enter key to select OK.

Configure the IPv6 Production Interface

This section describes how to manually enable and disable the IPv6 Production Interface, how to configure IPv6 static and dynamic routes, and how to add and remove static routes.

Manually disable and enable the IPv6 Production Interface

To manually disable or enable the IPv6 Production Interface:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 6 to select the IPv6 Configuration option.
  5. Press the Enter key to select OK.
  6. Enter M to select the MANUAL option.
  7. Press the Enter key to select OK. If the current state of the Production Interface is enabled, you are asked to confirm if you want to disable it. If the current state of the Production Interface is disabled, you are asked to confirm if you want to enable it.
  8. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  9. Press the Enter key to select OK.

Configure an IPv6 Static Production Interface

To configure an IPv6 static Production Interface:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 6 to select the IPv6 Configuration option.
  5. Press the Enter key to select OK.
  6. Enter S to select the STATIC option.
  7. Press the Enter key to select OK.
  8. Delete the existing IPv6 address and enter a new one.
  9. Press the Enter key to select OK.
  10. Delete the existing IPv6 address and enter a new one.
  11. Press the Enter key to select OK.
  12. Delete the existing IPv6 gateway and enter a new one.
  13. Press the Enter key to select OK.
  14. Delete the existing Domain Name Server and enter up to three.
  15. Press the Enter key to select OK. The Confirm window displays.
  16. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  17. Press the Enter key to select OK. For more information about configuring the Production and Management interfaces, see Configure the Production Interface and Configure the Management Interface.

Configure stateless automatic configuration

To configure stateless automatic configuration:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 6 to select the IPv6 Configuration option.
  5. Press the Enter key to select OK.
  6. Enter A to select the AUTO option.
  7. Press the Enter key to select OK. The Confirm window displays.
  8. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  9. Press the Enter key to select OK.

Configure the MTU and auto negotiation for the Production Interface

This section covers how to configure the MTU and auto-negotiation for the Production Interface.

Configure the Maximum Transmission Unit (MTU)

To configure the Maximum Transmission Unit (MTU):

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 9 to select the Interface Configuration option.
  5. Press the Enter key to select OK. The Production Interface Menu displays.
  6. Enter 0 to select the Maximum Transmission Unit (MTU) option.
  7. Enter the MTU of the networks in bytes.
  8. Press the Enter key to select OK. A Confirm window displays.
  9. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  10. Press the Enter key to select OK.

Configure auto negotiation

To configure auto negotiation:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 2 to select the Production Interface option.
  3. Press the Enter key to select OK. The Production Interface Menu displays.
  4. Enter 9 to select the Interface Configuration option.
  5. Press the Enter key to select OK. The Production Interface Menu displays.
  6. Enter 1 to select the Auto Negotiation option.
  7. Press the Enter key to select OK.
  8. Enter 1 to enable Auto Negotiation or enter 0 to disable Auto Negotiation.
  9. Press the Enter key to select OK. A Confirm window displays.
  10. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  11. Press the Enter key to select OK.

Configure the Management Interface

Static routes are used in deployments where Vidyo servers are in a DMZ between two segregated firewalls with no route for either internal or external traffic. Network Routes are also used when the Management Interface is enabled and you want to route traffic across that network.

Note

Vidyo recommends that this feature not replace adding proper network router to your DMZ to handle the proper subnet routes. Static route setup can lead to security vulnerabilities and should only be configured by advanced network administrators. Vidyo is not responsible for any possible security risk resulting from static route configurations.

Currently, you can only add a static route for one host at a time. Adding static routes for a range of IP addresses (or subnet) is not supported at this time.

The Management Interface should not be used to transfer any media.

View the Management Interface active information

The Management Interface Active Information window provides important information about the Management Interface, such as the currently configured IP address and the link status.

To view the Management Interface active information:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 3 to select the Management Interface option.
  3. Press the Enter key to select OK. The Management Interface Menu displays.
  4. Enter 0 to select the Active Information option.
  5. Press the Enter key to select OK. The Management Interface Active Information window displays.

Configure the IPv4 Management Interface

This section describes how to manually enable and disable the IPv4 Production Interface, how to configure IPv4 static and dynamic routes, and how to add and remove static routes.

Manually disable and enable the IPv4 Management Interface

To manually disable or enable the IPv4 Management Interface:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 3 to select the Management Interface option.
  3. Press the Enter key to select OK. The Management Interface Menu displays.
  4. Enter 4 to select the IPv4 Configuration option.
  5. Press the Enter key to select OK.
  6. Enter M to select the MANUAL option.
  7. Press the Enter key to select OK. If the current state of the Management Interface is enabled, you are asked to confirm if you want to disable it; if the current state of the Management Interface is disabled, you are asked to confirm if you want to enable it.
  8. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  9. Press the Enter key to select OK.

Configure an IPv4 static Management Interface

To configure an IPv4 static Management Interface:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 3 to select the Management Interface option.
  3. Press the Enter key to select OK. The Management Interface Menu displays.
  4. Enter 4 to select the IPv4 Configuration option.
  5. Press the Enter key to select OK.
  6. Enter S to select the STATIC option.
  7. Press the Enter key to select OK.
  8. Delete the existing IPv4 address and enter a new one.
  9. Press the Enter key to select OK.
  10. Delete the existing IPv4 subnet mask and enter a new one.
  11. Press the Enter key to select OK. The Confirm window displays.
  12. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  13. Press the Enter key to select OK.

    14. For more information about configuring the Production and Management interfaces, see Configure the Production Interface and Configure the Management Interface.

Configure IPv4 Static Routes

This section describes how to add and remove IPv4 static routes.

The VidyoReplay system supports IPv4 only or IPv6 only mode. Dual stack mode is not supported.

Add IPv4 Static Routes

To add IPv4 Static Routes:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 3 to select the Management Interface option.
  3. Press the Enter key to select OK. The Management Interface Menu displays.
  4. Enter 5 to select the IPv4 Static Routes option.
  5. Press the Enter key to select OK. The IPv4 Static Routes window displays.
  6. Enter A to select the Add option.
  7. Press the Enter key to select OK. The IPv4 Static Routes window displays.
  8. Enter a new network with the prefix in CIDR notation (for example, 192.168.3.0/24).
  9. Press the Enter key to select OK.
  10. Enter a new network gateway.
  11. Press the Enter key to select OK. The Confirm window displays.
  12. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  13. Press the Enter key to select OK.

Remove IPv4 Static Routes

To remove IPv4 Static Routes:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 3 to select the Management Interface option.
  3. Press the Enter key to select OK. The Management Interface Menu displays.
  4. Enter 5 to select the IPv4 Static Routes option.
  5. Press the Enter key to select OK. The IPv4 Static Routes window displays.
  6. Enter R to select the Remove option.
  7. Press the Enter key to select OK. The IPv4 Static Routes window displays.
  8. Select the static route to remove.
  9. Press the Enter key to select OK. The Confirm window displays.
  10. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  11. Press the Enter key to select OK.

Configure the MTU and auto-negotiation for the Management Interface

How to configure the MTU and auto-negotiation for the Management Interface.

Configure the Maximum Transmission Unit (MTU)

To configure the Maximum Transmission Unit (MTU):

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 3 to select the Management Interface option.
  3. Press the Enter key to select OK. The Management Interface Menu displays.
  4. Enter 9 to select the Interface Configuration option.
  5. Press the Enter key to select OK.
  6. Enter 0 to select the Maximum Transmission Unit (MTU) option.
  7. Press the Enter key to select OK.
  8. Enter the MTU of the networks in bytes.
  9. Press the Enter key to select OK. A Confirm window displays.
  10. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  11. Press the Enter key to select OK.

Configure auto negotiation

To configure auto negotiation:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 3 to select the Management Interface option.
  3. Press the Enter key to select OK. The Management Interface Menu displays.
  4. Enter 9 to select the Interface Configuration option.
  5. Press the Enter key to select OK.
  6. Enter 1 to select the Auto Negotiation option.
  7. Press the Enter key to select OK.
  8. Enter 1 to enable Auto Negotiation or enter 0 to disable Auto Negotiation. A Confirm window displays.
  9. Press the Enter key to select Yes. A message displays stating “Changes saved. Reboot REQUIRED for changes to take effect.”
  10. Press the Enter key to select OK.

Configure time servers (NTP)

To configure time servers (NTP):

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 4 to select the Time Servers (NTP) option.
  3. Press the Enter key to select OK. If you have DHCP configured, a message displays stating “The name servers configured by DHCP take priority over the values configured here” and you must press the Enter key to select OK.
  4. Enter up to three network time servers separated by a space (for example, pool.ntp.org).
  5. Press the Enter key to select OK. A Confirm window displays.
  6. Press the Enter key to select Yes. A message displays stating “Sync time with timeservers now? Timeservers must be reachable. Are you sure?”
  7. Press the Enter key to select OK.
  8. A message displays stating “System time updated.”

Configure users

System Console user accounts can be used on the VidyoPortal, the VidyoRouter, and the VidyoReplay.

The System Console allows for the creation of up to ten System Console user accounts.

Note

In addition to accessing the System Console menu, the ten System Console accounts can also access the VidyoReplay Admin Pages.

Each new System Console account has a default password of password, which is case sensitive.

The System Console accounts force a password change on first login. To prevent the use of default passwords, each new System Console user must be present at the local console during account creation. That user must log in and change their password and it must meet password complexity requirements.

View active user information

To view active user information:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 5 to select the Users option.
  3. Press the Enter key to select OK. The Password required to continue window displays.
  4. Enter your password.

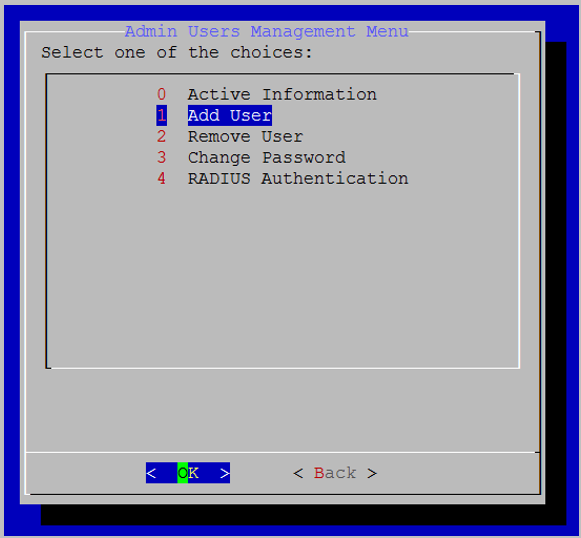

  5. Press the Enter key to select OK. The Admin Users Management Menu displays.
  6. Enter 0 to select the Active Information option.
  7. Press the Enter key to select OK. The Users Active Information window displays.
  8. Press the Enter key to select OK.

Add users

To add users:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 5 to select the Users option.
  3. Press the Enter key to select OK. The Password required to continue window displays.
  4. Enter your password.
  5. Press the Enter key to select OK. The Admin Users Management Menu displays.
  6. Enter 1 to select the Add Users option.
  7. Press the Enter key to select OK.
  8. Enter the user name of the user you are adding.
  9. Press the Enter key to select OK.
  10. Enter 0 to select the Local option.
  11. Press the Enter key to select OK.
  12. Enter the password of the user you are adding.

    13. Enter a unique password that follows these password complexity requirements:

    • The password should not be based on the dictionary.
    • The password should not be too similar to the old password. The default setting is at least three characters and should be different from the old password.
    • The password should not be too simple or too short. The algorithm here is a point system to satisfy the minimum password length (the default is length eight characters). The password gets extra points if it contains a number, upper case, lower case, or special character. Each point is equivalent to one character.
    • The password should not be a case change of the old password or should not be the reverse of the old password.
  13. Press the Enter key to select OK.
  14. Enter the password again to confirm it.

    15. If the passwords don’t match, you’ll be prompted to try again. If the passwords match, the System Console menu opens immediately.

    Note

    When you need to reset the password, use option 3. Change Password. This functionality is only available for local admin accounts. See Change user passwords.
  15. Press the Enter key to select OK. A message displays stating “[User] has been added.”
  16. Press the Enter key to select OK.

Remove users

To remove users:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 5 to select the Users option.
  3. Press the Enter key to select OK. The Password required to continue window displays.
  4. Enter your password.
  5. Press the Enter key to select OK. The Admin Users Management Menu displays.
  6. Enter 2 to select the Remove Users option.
  7. Select the user you want to remove.
  8. Press the Enter key to select OK. The Confirm window displays.
  9. Press the Enter key to select Yes. A message displays stating “[User] has been removed.”
  10. Press the Enter key to select OK.

Change user passwords

To change user passwords:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 5 to select the Users option.
  3. Press the Enter key to select OK. The Password required to continue window displays.
  4. Enter your password.
  5. Press the Enter key to select OK. The Admin Users Management Menu displays.
  6. Enter 3 to select the Change Password option.
  7. Press the Enter key to select OK.
  8. Select the user whose password you want to change.
  9. Press the Enter key to select OK. The Confirm window displays.
  10. Press the Enter key to select Yes.
  11. Enter the new password for the user.
  12. Press the Enter key to select OK.
  13. Enter the password again to confirm it.
  14. Press the Enter key to select OK. A message displays stating “Password changed for [user].”
  15. Press the Enter key to select OK.

Access tools

The Tools menu enables you to access the Ping, DNS Lookup, and Traceroute tools.

To access tools:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 6 to select the Tools option.
  3. Press the Enter key to select OK. The Tools menu displays.
  4. Do any of the following:
    • Enter 1 to test connectivity to an IP address.
    • Enter 2 to perform a DNS lookup.
    • Enter 3 to perform a traceroute.
  5. Press the Enter key to select OK.

Perform advanced configuration

The Advanced screen allows administrators to perform more advanced configuration functions, such as setting SNMP, taking backups of the system, and reconfiguring SSH ports among others.

Configure FIPS

FIPS is the Federal Information Processing Standard 140-2. By default, FIPS mode is disabled on your Vidyo server.

FIPS Certified Modules include the following:

  1. Vidyo’s SDK has been FIPS 140-2 validated:
  2. Third party applications – Apache, Net-SNMP, OpenSSH, and OpenSSL – have been built using the FIPS-validated OpenSSL module.

The following steps show you how to enable or disable FIPS mode from the System Console.

To configure FIPS:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 1 to select the FIPS Mode option.
  5. Press the Enter key to select OK. The FIPS Mode window displays.

    6. The administrator can view the current status of FIPS mode in the system and toggle the state. If FIPS is enabled, the window includes the Disable option only; if FIPS is disabled, the window includes the Enable option only.

  6. Enter 1 to select Disable.
  7. Press the Enter key to select OK.

    8. When your system comes back online, FIPS is then disabled (or enabled) on your Vidyo server.

Run the recovery utility

The recovery utility enables you to take snapshots of your system, restore the snapshots, delete the snapshots, and restore the factory default.

Take snapshots

A maximum of two user snapshots are allowed. This limitation does not include snapshots that are automatically generated upon upgrading your VidyoReplay (for example, VidyoUpdate). When two user snapshots already exist and the user attempts to take a new one, the following message will display:

For more information about deleting snapshots, see Delete snapshots.

To take snaphots:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 2 to select the Recovery Utility option.
  5. Press the Enter key to select OK. The Recover Utility Main Menu displays.
  6. Enter S to select the Take Snapshot option.

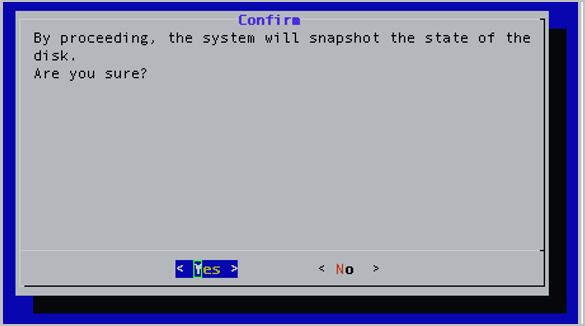

  7. Press the Enter key to select OK. The Confirm window displays.
  8. Press the Enter key to select Yes. The Name window displays.
  9. Enter a name for the snapshot. The name must be from two to twelve alphanumeric characters in length.
  10. Press the Enter key to select OK. The Description window displays.
  11. Enter a description for the snapshot.
  12. Press the Enter key to select OK. A message displays stating “Snapshot successful.”
  13. Press the Enter key to select OK.

Restore snapshots

To restore snaphots:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 2 to select the Recovery Utility option.
  5. Press the Enter key to select OK. The Recover Utility Main Menu displays.
  6. Enter R to select the Restore Snapshot option.
  7. Press the Enter key to select OK. The Restore Snapshot window displays.
  8. Select the snapshot you want to restore.
  9. Press the Enter key to select OK. To ensure that you have selected the correct snapshot, a message displays stating “Description of the snapshot: [snapshot description].”
  10. Press the Enter key to select OK. A Message window displays listing the Vidyo applications on the snapshot as well as the version number of each application.
  11. Press the Enter key to select OK. The Confirm window displays.
  12. Press the Enter key to select Yes.

Delete snapshots

To delete snaphots:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 2 to select the Recovery Utility option.
  5. Press the Enter key to select OK. The Recover Utility Main Menu displays.
  6. Enter D to select the Delete Snapshot option.
  7. Press the Enter key to select OK. The Delete Snapshot window displays.
  8. Select the snapshot you want to delete.
  9. Press the Enter key to select OK. To ensure that you have selected the correct snapshot, a message displays stating “Description of the snapshot: [snapshot description].”
  10. Press the Enter key to select OK. A Message window displays listing the Vidyo applications on the snapshot as well as the version number of each application.
  11. Press the Enter key to select OK. The Confirm window displays.
  12. Press the Enter key to select Yes. A message displays stating “Snapshot successfully deleted.”
  13. Press the Enter key to select OK.

Perform a factory restore

To perform a factory restore:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 2 to select the Recovery Utility option.
  5. Press the Enter key to select OK. The Recover Utility Main Menu displays.
  6. Enter F to select the Factory Restore option.
  7. Press the Enter key to select OK. The Confirm window displays.
  8. Press the Enter key to select Yes.

Configure SNMP

You can use SNMP (Simple Network Management Protocol) to manage and monitor the components over your entire Vidyo network. You can configure notifications or traps and send them to your network management server via SNMPv2 community strings or SNMPv3 users.

Note

Some un-configurable object identifiers (OIDs) are standard on all Vidyo Servers. With SNMP traps enabled, they provide notifications if the CPU, disk or memory utilization has reached its threshold (~80% utilization). The specific OIDs are cpuLoadReachedThreshold, diskReachedThreshold, and memoryReachedThreshold.

For more information about Vidyo enterprise notifications, as well as Get, and Set Polling OIDs, download the Vidyo MIB file from the Vidyo Support Centre.

Enable, disable, and restart SNMP

Enable SNMP only after configuring SNMP2 community strings or SNMPv3 users and creating notifications or traps.

To enable, disable, or restart SNMP:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 1 to select the Status option.
  7. Press the Enter key to select OK. The SNMP Status Menu displays including the current status. If SNMP is enabled, the window includes the Disable option only; if SNMP is disabled, the window includes the Enable option only.
  8. Enter 1 to select Disable, or enter 2 to select the Restart option.
  9. Press the Enter key to select OK. When your system comes back online, SNMP is then enabled (or disabled).

Configure SNMP v2 communities

You can create two SNMP v2 community strings on your system that can access your network management server. One community string has read-only access and the other has read-write access.

List the SNMP v2 communities

To list the SNMP v2 communities:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 2 to select the V2 Communities option.
  7. Press the Enter key to select OK. The SNMP V2 Community Menu displays.
  8. Enter 1 to select the List Communities option.
  9. Press the Enter key to select OK. The V2 Communities window, which lists the current v2 communities, displays.
  10. Press the Enter key to select OK.

Add SNMP v2 communities

To add SNMP v2 communities:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 2 to select the V2 Communities option.
  7. Press the Enter key to select OK. The SNMP V2 Community Menu displays.
  8. Enter 2 to select the Add Community option.
  9. Press the Enter key to select OK. The Add V2 Community window displays.
  10. Enter the community string using no less than eight characters.
  11. Press the Enter key to select OK. The next Add V2 Community window displays.
  12. Enter 1 if you want the community access rights to be read only or enter 2 if you want the community access rights to be read and write.
  13. Press the Enter key to select OK. The next Add V2 Community window displays.
  14. Enter the IP address or subnet to access this community, or leave the text box blank if you want to allow access to all.
  15. Press the Enter key to select OK.

Remove an SNMP community string

To remove an SNMP v2 community string:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 2 to select the V2 Communities option.
  7. Press the Enter key to select OK. The SNMP V2 Community Menu displays.
  8. Enter 3 to select the Remove Community option.
  9. Press the Enter key to select OK. The Remove V2 Community window displays.
  10. Enter the community string of the community you want to remove.
  11. Press the Enter key to select OK.
  12. A message displays stating “Successfully removed community.”
  13. Press the Enter key to select OK.

List SNMP v2 notifications

To list an SNMP v2 notification:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 2 to select the V2 Communities option.
  7. Press the Enter key to select OK. The SNMP V2 Community Menu displays.
  8. Enter 4 to select the List Notifications option.
  9. Press the Enter key to select OK. The V2 Notifications window displays.
  10. Press the Enter key to select OK.

Add SNMP v2 notifications

To add an SNMP v2 notification:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 2 to select the V2 Communities option.
  7. Press the Enter key to select OK. The SNMP V2 Community Menu displays.
  8. Enter 5 to select the Add Notifications option.
  9. Press the Enter key to select OK. The Add V2 Notification window displays.
  10. Enter the IP address of the SNMP notification’s destination.
  11. Press the Enter key to select OK. The next Add V2 Notification window displays.
  12. Enter 1 if the notification type is a TRAP or enter 2 if the notification type is an INFORM.
  13. Press the Enter key to select OK.
  14. Enter the password for the community string.
  15. Press the Enter key to select OK. A message displays stating “Successfully added notification.”
  16. Press the Enter key to select OK.

Remove SNMP v2 notifications

To remove an SNMP v2 notification:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 2 to select the V2 Communities option.
  7. Press the Enter key to select OK. The SNMP V2 Community Menu displays.
  8. Enter 6 to select the Remove Notification option.
  9. Press the Enter key to select OK. The Remove V2 Notification window displays.
  10. Enter the IP address of the notification you want to remove. The list of notifications available for removal is displayed above the text box.
  11. Press the Enter key to select OK. A message displays stating “Successfully removed notification.”
  12. Press the Enter key to select OK.

Configure SNMP v3 users

This section describes how to list the SNMP v3 users, add and remove them, and list, add, and remove notifications.

List SNMP v3 users

To list SNMP v3 users:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 3 to select the V3 Users option.
  7. Press the Enter key to select OK. The SNMP V3 Community Menu displays.
  8. Enter 1 to select the List Users option.
  9. Press the Enter key to select OK. The V3 Users window, which lists all the V3 users, displays.
  10. Press the Enter key to select OK.

Add SNMP v3 users

To add SNMP v3 users:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 3 to select the V3 Users option.
  7. Press the Enter key to select OK. The SNMP V3 Community Menu displays.
  8. Enter 2 to select the Add User option.
  9. Press the Enter key to select OK. The Add V3 User window displays.
  10. Enter the user name of the v3 user you want to add.
  11. Press the Enter key to select OK. The next Add V3 User window displays.
  12. Enter the password for the new V3 user.
  13. Press the Enter key to select OK.
  14. The next Add V3 User window displays.
  15. Enter 1 if you want the new v3 user’s access rights to be read only or enter 2 if you want the new v3 user’s access rights to be read and write.
  16. Press the Enter key to select OK.
  17. Select the user privacy method: AES, DES, or None.
  18. Press the Enter key to select OK.
  19. Enter the privacy password.
  20. Press the Enter key to select OK.

Remove an SNMP v3 user

To remove and SNMP v3 user:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 3 to select the V3 Users option.
  7. Press the Enter key to select OK. The SNMP V3 Users Menu displays.
  8. Enter 3 to select the Remove User option.
  9. Press the Enter key to select OK. The Remove V3 User window displays.
  10. Press the Enter key to select OK. A message displays stating “Successfully removed user.”
  11. Press the Enter key to select OK.

List SNMP v3 notifications

To list an SNMP v3 notification:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 3 to select the V3 Users option.
  7. Press the Enter key to select OK. The SNMP V3 Users Menu displays.
  8. Enter 4 to select the List Notifications option.
  9. Press the Enter key to select OK. The V3 Notifications window displays.
  10. Press the Enter key to select OK.

Add SNMP v3 notifications

To add an SNMP v3 notification:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 3 to select the V3 Users option.
  7. Press the Enter key to select OK. The SNMP V3 Users Menu displays.
  8. Enter 5 to select the Add Notification option.
  9. Press the Enter key to select OK. The Add V3 Notification window displays.
  10. Enter the IP address or FQDN of the notification’s destination.
  11. Press the Enter key to select OK.
  12. Enter the user name.
  13. Press the Enter key to select OK.
  14. Enter 1 if the notification type is a TRAP or enter 2 if the notification type is an INFORM.
  15. Press the Enter key to select OK.
  16. Enter the user authentication password.
  17. Press the Enter key to select OK.
  18. Select the user privacy method: AES, DES, or None.
  19. Press the Enter key to select OK.
  20. Enter the privacy password.
  21. Press the Enter key to select OK. A message displays stating “Successfully added notification.”
  22. Press the Enter key to select OK.

Remove SNMP v3 notifications

To remove an SNMP v3 notification:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 3 to select the SNMP Administration option.
  5. Press the Enter key to select OK. The SNMP Menu displays.
  6. Enter 3 to select the V3 Users option.
  7. Press the Enter key to select OK. The SNMP V3 Users Menu displays.
  8. Enter 6 to select the Remove Notification option.
  9. Press the Enter key to select OK. The Remove V3Notification window displays.
  10. Enter the IP address or FQDN of the notification you want to remove.
  11. Press the Enter key to select OK. A message displays stating “Successfully removed notification.”
  12. Press the Enter key to select OK.

Configure SSH

To configure SSH:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 4 to select the SSH Configuration option.
  5. Press the Enter key to select OK. The SSH Port window displays.
  6. Enter the port number on which SSH can listen.
  7. Press the Enter key to select OK. The Confirm window displays.
  8. Press the Enter key to select Yes. Another Confirm window displays asking if you want to apply the new SSH port setting.
  9. Press the Enter key to select Yes.

Manage static hosts

Static Host entries can be added to a single host file on your VidyoPortal. These entries are used to map an IP address to a specific Static Host or FQDN.

Note

Vidyo recommends that this feature not replace adding proper records to your internal and external DNS servers. It should only be used to support DMZ deployments where there is no DNS server access from the DMZ and allowing the different servers to properly locate each other.

The Cluster FQDN of the VidyoPortal can be added to the hostfile to avoid making DNS queries from your VidyoManager, VidyoRouter, and VidyoProxy to the same VidyoPortal on which they reside. If you use the same Public FQDN as your Cluster FQDN, then it is not necessary to add the Cluster FQDN to your hostfile.

View active information

To view active information:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 5 to select the Static Hosts option.
  5. Press the Enter key to select Yes. The Static Hosts Management Menu displays.
  6. Enter 0 to select the Active Information option. The Static Hosts Active Information window displays.
  7. Press the Enter key to select Yes.

Add static hosts

To add static hosts:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 5 to select the Static Hosts option.
  5. Press the Enter key to select OK. The Static Hosts Management Menu displays.
  6. Enter 1 to select the Add Host option.
  7. Press the Enter key to select OK. The Static Hosts Management Menu window displays.
  8. Enter the IP address of the static host you want to add.
  9. Press the Enter key to select OK. The next Static Hosts Management Menu window displays.
  10. Enter the hostname(s) you want to associate with the IP address you just entered.
  11. Press the Enter key to select Yes. The Message window displays indicating that the IP address has been added.
  12. Press the Enter key to select OK.

Remove static hosts

To remove static hosts:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 5 to select the Static Hosts option.
  5. Press the Enter key to select OK. The Static Hosts Management Menu displays.
  6. Enter 2 to select the Remove Host option.
  7. Press the Enter key to select OK. The Static Hosts Management Menu window displays.
  8. Select the IP address of the static host you want to remove.
  9. Press the Enter key to select OK. The Confirm window displays.
  10. Press the Enter key to select Yes. The Message window displays indicating that the IP address has been removed.
  11. Press the Enter key to select OK.

Manage Vidyo Apache settings

This section describes how to view current settings, set modern or intermediate profiles, enable or disable OCSP stapling, and steps to reload Apache.

View display current settings

To view display current settings:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 6 to select the Vidyo Apache Settings.
  5. Press the Enter key to select OK. The Vidyo Apache2 Settings window displays.
  6. Enter 0 to select the Display Current Settings option. The Apache Active Information window displays.
  7. Press the Enter key to select OK.

Set SSL profiles

To set an SSL profile:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 6 to select the Vidyo Apache Settings.
  5. Press the Enter key to select OK. The Vidyo Apache2 Settings window displays.
  6. Enter 1 to select the Set SSL Profile option.
  7. Select the appropriate option. Refer to the below table for the profile configuration details:
    1. Mode TLS Versions Cipher Suites (in server-preferred order)
      Default

      1.0 (deprecated)

      1.1 (deprecated)

      1.2

      1.3

      TLS 1.3

      • TLS_AES_256_GCM_SHA384
      • TLS_CHACHA20_POLY1305_SHA256
      • TLS_AES_128_GCM_SHA256



      TLS 1.2

      • TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
      • TLS_DHE_RSA_WITH_AES_256_CCM_8
      • TLS_DHE_RSA_WITH_AES_256_CCM
      • TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
      • TLS_DHE_RSA_WITH_AES_128_GCM_SHA256
      • TLS_DHE_RSA_WITH_AES_128_CCM_8
      • TLS_DHE_RSA_WITH_AES_128_CCM
      • TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384
      • TLS_DHE_RSA_WITH_AES_256_CBC_SHA256
      • TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256
      • TLS_DHE_RSA_WITH_AES_128_CBC_SHA256
      • TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA
      • TLS_DHE_RSA_WITH_AES_256_CBC_SHA
      • TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA
      • TLS_DHE_RSA_WITH_AES_128_CBC_SHA
      • TLS_RSA_WITH_AES_256_GCM_SHA384
      • TLS_RSA_WITH_AES_256_CCM_8
      • TLS_RSA_WITH_AES_256_CCM
      • TLS_RSA_WITH_AES_128_GCM_SHA256
      • TLS_RSA_WITH_AES_128_CCM_8
      • TLS_RSA_WITH_AES_128_CCM
      • TLS_RSA_WITH_AES_256_CBC_SHA256
      • TLS_RSA_WITH_AES_128_CBC_SHA256
      • TLS_RSA_WITH_AES_256_CBC_SHA
      • TLS_RSA_WITH_AES_128_CBC_SHA
      Intermediate

      1.0 (deprecated)

      1.1 (deprecated)

      1.2

      1.3

      TLS 1.3

      • TLS_AES_256_GCM_SHA384
      • TLS_CHACHA20_POLY1305_SHA256
      • TLS_AES_128_GCM_SHA256

      TLS 1.2

      • TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
      • TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
      • TLS_DHE_RSA_WITH_AES_256_GCM_SHA384
      • TLS_DHE_RSA_WITH_AES_128_GCM_SHA256
      • TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384
      • TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA
      • TLS_DHE_RSA_WITH_AES_256_CCM_8
      • TLS_DHE_RSA_WITH_AES_256_CCM
      • TLS_DHE_RSA_WITH_AES_256_CBC_SHA256
      • TLS_DHE_RSA_WITH_AES_256_CBC_SHA
      Modern

      1.2

      1.3

      TLS 1.3

      • TLS_AES_256_GCM_SHA384
      • TLS_CHACHA20_POLY1305_SHA256
      • TLS_AES_128_GCM_SHA256

      TLS 1.2

      • TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
      • TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
      • TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384
      • TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256
      Modern Strict

      1.2

      1.3

      TLS 1.3

      • TLS_AES_256_GCM_SHA384
      • TLS_CHACHA20_POLY1305_SHA256
      • TLS_AES_128_GCM_SHA256

      TLS 1.2

      • TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
      • TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
      • TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256

    Note

    MODERN STRICT mode is only available in the following versions:

    • Anchor Version 22.2.4 or later
    • Feature Version 23.2.0 or later
  8. Press the Enter key to select OK. The Message window displays.
  9. Press the Enter key to select OK.

    10. Note

    When setting profiles, make sure to reload Apache for settings to take effect. Go back to the Vidyo Apache2 Settings window, and then press 3 for the Reload Apache option.

    To set Intermediate Profile after Set Modern Profile, go back into the Vidyo Apache2 Settings window and then select Intermediate Profile.

Enable or disable OCSP Stapling

To enable or disable OCSP Stapling:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 6 to select the Vidyo Apache Settings.
  5. Press the Enter key to select OK. The Vidyo Apache2 Settings window displays.
  6. Enter 2 to select the Enable OCSP Stapling option. The Message window displays.
  7. Press the Enter key to select OK.

    8. Note

    After enabling OCSP Stapling, make sure to reload Apache for settings to take effect. Go back to the Vidyo Apache2 Settings window, and then press 3 for the Reload Apache option.

    To disable OCSP Stapling after enabling, go back into the VIdyoApache2 Settings window and then select, Disable OCSP Stapling.

Reload Apache

To reload Apache:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 6 to select the Vidyo Apache Settings.
  5. Press the Enter key to select OK. The Vidyo Apache2 Settings window displays.
  6. Enter 3 to select the Reload Apache option. The Message window displays, “Apache reloaded with Settings”.
  7. Press the Enter key to select OK.

Manage VidyoPlatform API users

This section describes how to display a list of your API users as well as how to add, remove, and update API users.

List API users

To list API users:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 7 to select the VidyoPlatformAPI User option.
  5. Press the Enter key to select OK. The Password required to continue window displays.
  6. Enter your password and then press the Enter key to select OK. The VidyoAPI User Menu window displays.
  7. Enter 0 to select the List Api Users option and the press the Enter key to select OK. The User Active Information window displays the current user(s).
  8. Press the Enter key to select OK.

Add and remove API users

To add and remove API users:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 7 to select the VidyoPlatformAPI User option.
  5. Press the Enter key to select OK. The Password required to continue window displays.
  6. Enter your password and then press the Enter key to select OK. The VidyoAPI User Menu window displays.
  7. Enter 1 to select the Add User option, and the press the Enter key to select OK. The Admin Users Management Menu window displays this message, “Please enter the new username”.
  8. Enter a username and then press the Enter key to select OK. The Admin Users Management Menu window displays this message, “Enter the public key for test.”
  9. Enter a public key for a text and then press the Enter key to select OK. The Message window displays this message, “User has been added”.
  10. Press the Enter key to select OK and then the Message window confirms the user was added.

    11. Note

    To remove a user, follow the same steps above, except select 2 to Remove User. Then, choose the user to remove and the press Enter key to select OK. When the Confirm window displays this message, “Remove Api user “test”, Are you sure?”, then press the Enter key to select Yes. The system will then display a message that the user was successfully removed.

Update user key

To update the user key:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 7 to select the VidyoPlatformAPI User option.
  5. Press the Enter key to select OK. The VidyoAPI User Menu displays.
  6. Enter 3 to select the Update User Key option, and then press the Enter key to select OK. The Admin Users Management Menu window displays.
  7. Choose the user to update in the list and then press the Enter key to select OK. The Admin Users Management Menu window displays.
  8. Enter the public key for password and then press the Enter key to select OK. The Message window displays the updated password key.
  9. Press the Enter key to select OK.

Configure remote Vidyo Support access

This section describes how to generate a one-time encrypted password that enables the Vidyo Customer Support team to remotely access your VidyoReplay system in a secure manner. The encrypted password that is generated expires at midnight UTC the day after it is generated.

You can also disable remote Vidyo Support access as described in this section.

Enable remote Vidyo Support access

To enable remote Vidyo Support access:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 8 to select the Vidyo Support option.
  5. Press the Enter key to select OK. The following message displays:
  6. Press any key on your keyboard.
  7. Enter y to generate a new token for remote support access.
  8. Press the Enter key.
    • If you are accessing the System Console via SSH, a one-time encrypted password is generated as shown:
    • If you are directly accessing the System Console, a one-time encrypted password is generated as shown:
  9. Do one of the following:
    • If you are accessing the System Console via SSH, copy the one-time encrypted password shown on the screen and provide it to Vidyo Support.
    • If you are directly accessing the System Console, scan the QR code and send it to Vidyo Support.

    Note

    The password that is generated expires at midnight UTC the day after it is generated.
  10. Press any key to return to the Advanced Main Menu.

Disable remote Vidyo Support access

To disable remote Vidyo Support access:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 7 to select the Advanced option.
  3. Press the Enter key to select OK. The Main Menu for the Advanced configuration displays.
  4. Enter 8 to select the Vidyo Support option.
  5. Press the Enter key to select OK. The following message displays:
  6. Press any key on your keyboard.
  7. Enter y to disable remote support access.
  8. Press the Enter key. A message indicates that remote access is disabled.
  9. Press any key to return to the Advanced Main Menu.

Reboot the System Console

To reboot the System Console:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 8 to select the Reboot option.
  3. Press the Enter key to select OK. The Confirm window displays.
  4. Press the Enter key to select Yes.

Shut down the System Console

To shut down the System Console:

  1. Log in to the System Console. The Main Menu displays.
  2. Enter 9 to select the Shutdown option.
  3. Press the Enter key to select OK. The Confirm window displays.
  4. Press the Enter key to select Yes.

Log in to VidyoReplay

Now that you have connected your VidyoReplay server to the network and added both your VidyoReplay Recorder and your VidyoReplay on your VidyoPortal, you must log in as the Super Admin and configure your VidyoReplay to ensure that it can function within your VidyoConferencing system.

To log in to your VidyoReplay:

  1. Enter the URL or IP address for the VidyoReplay in the address bar of a web browser. The URL of your VidyoReplay is typically a domain name: [vidyoreplay.example.com]. The VidyoReplay Public Library displays.

    2. Note

    Only recordings with Public selected as the Who can watch option display on this screen. Otherwise a blank login screen displays. See 7. VidyoReplay Library and Manager access levels .
  2. Log in to the VidyoReplay using the default Super account:

    3. User Name: super

    Password: password (case sensitive)

    Note

    We recommend that you change this password from the default.
  3. Click Login. Your VidyoReplay Personal Library displays.

    4. Note

    Recordings or webcasts display in your VidyoReplay Library based on Access Levels. See 7. VidyoReplay Library and Manager access levels.

Set the language for the Super Admin interface

The VidyoReplay’s Super Admin interface is available in these 15 languages:

  • Chinese (Simplified)
  • Chinese (Traditional)
  • English
  • Finnish
  • French
  • German
  • Italian
  • Japanese
  • Korean
  • Polish
  • Portuguese
  • Spanish
  • Thai
  • Turkish

Set the language of your Super Admin Pages using the drop-down on the upper left corner of the Super Admin Login page (before or after logging into the system).

Note

Interfaces are immediately modified after selecting your preferred language or color scheme using the drop-downs.

To set your preferred language using the drop-down on the upper left corner of the VidyoReplay:

  • Select your desired language using the language drop-down on the upper-left corner of the VidyoReplay in any of the following states:
  • Prior to logging in to VidyoReplay.
  • After logging in to VidyoReplay.
